CT-2.2 Instrument Cluster Test Bench for BMW
CT-2.2 Instrument Cluster Test Bench for BMW
NOTE: Lead time for preorders is 1-2 weeks.
Share
Couldn't load pickup availability
- ✔ Premium quality
- ✔ Made in EU
- ✔ Secure payments

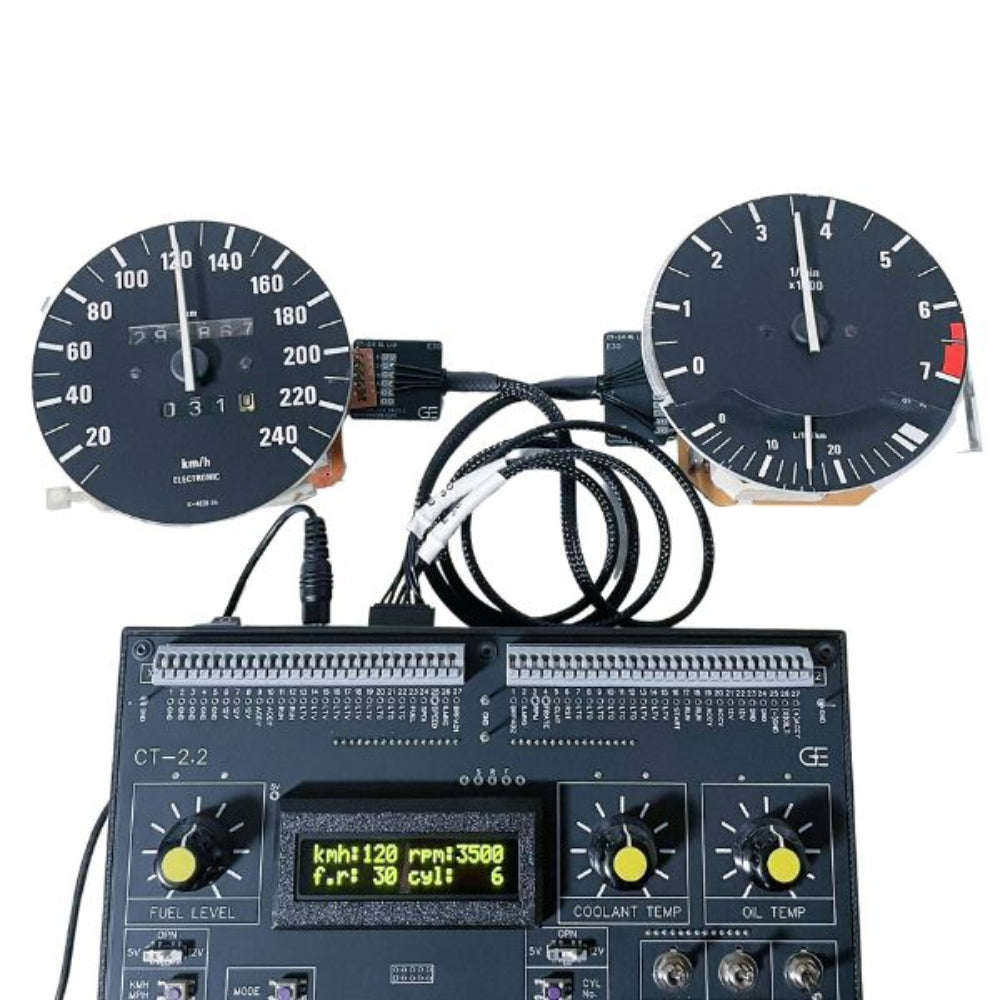

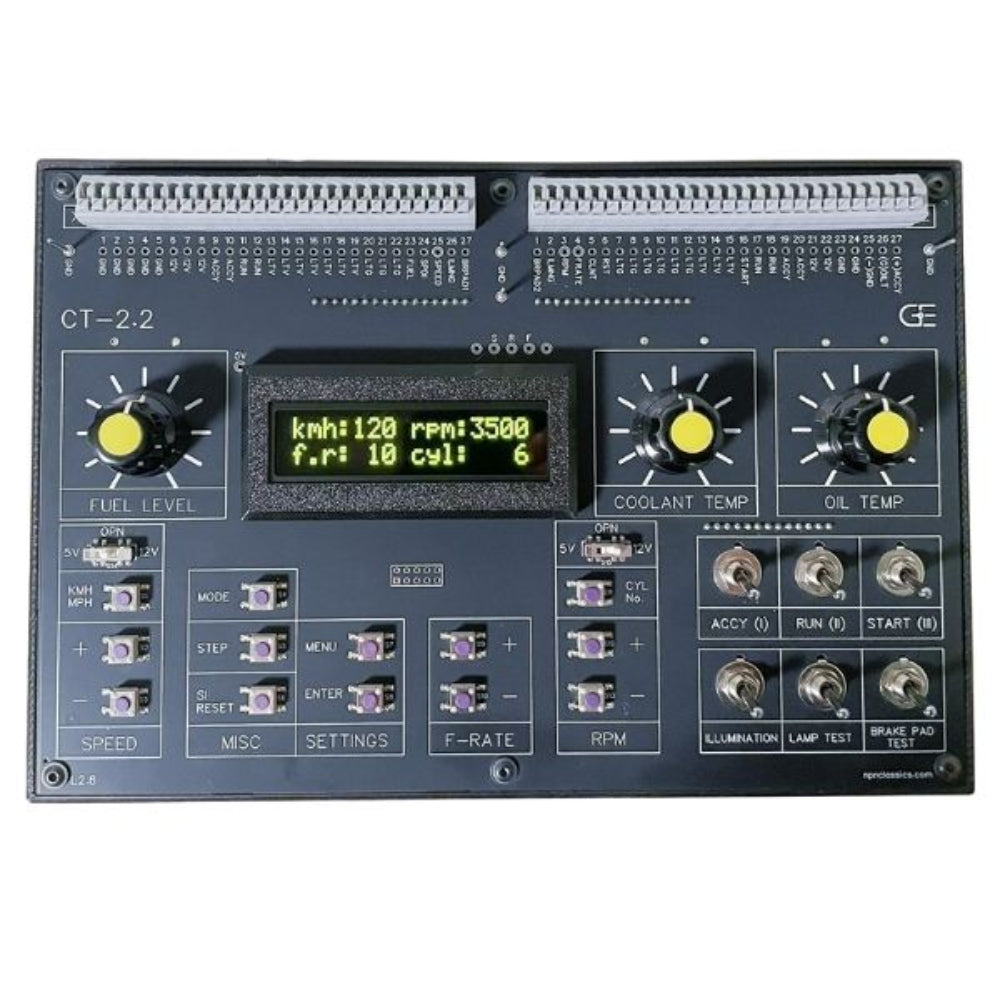

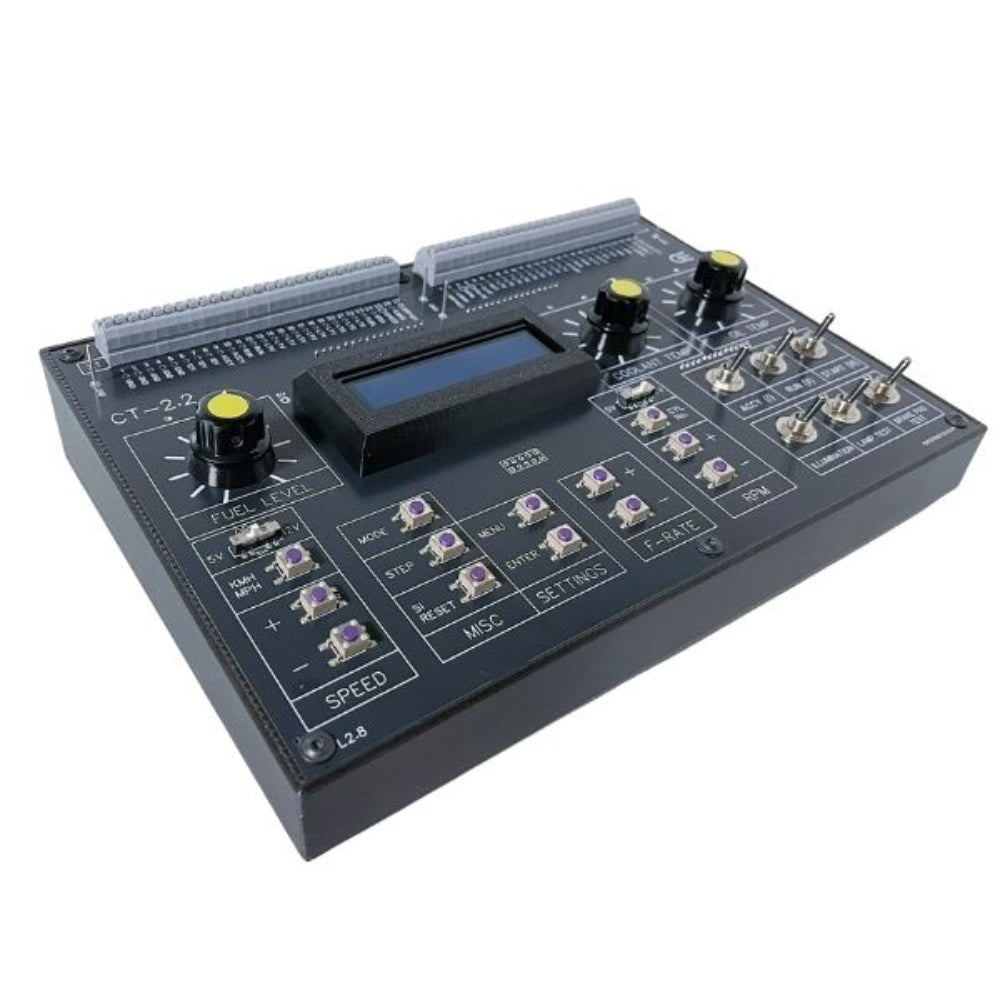

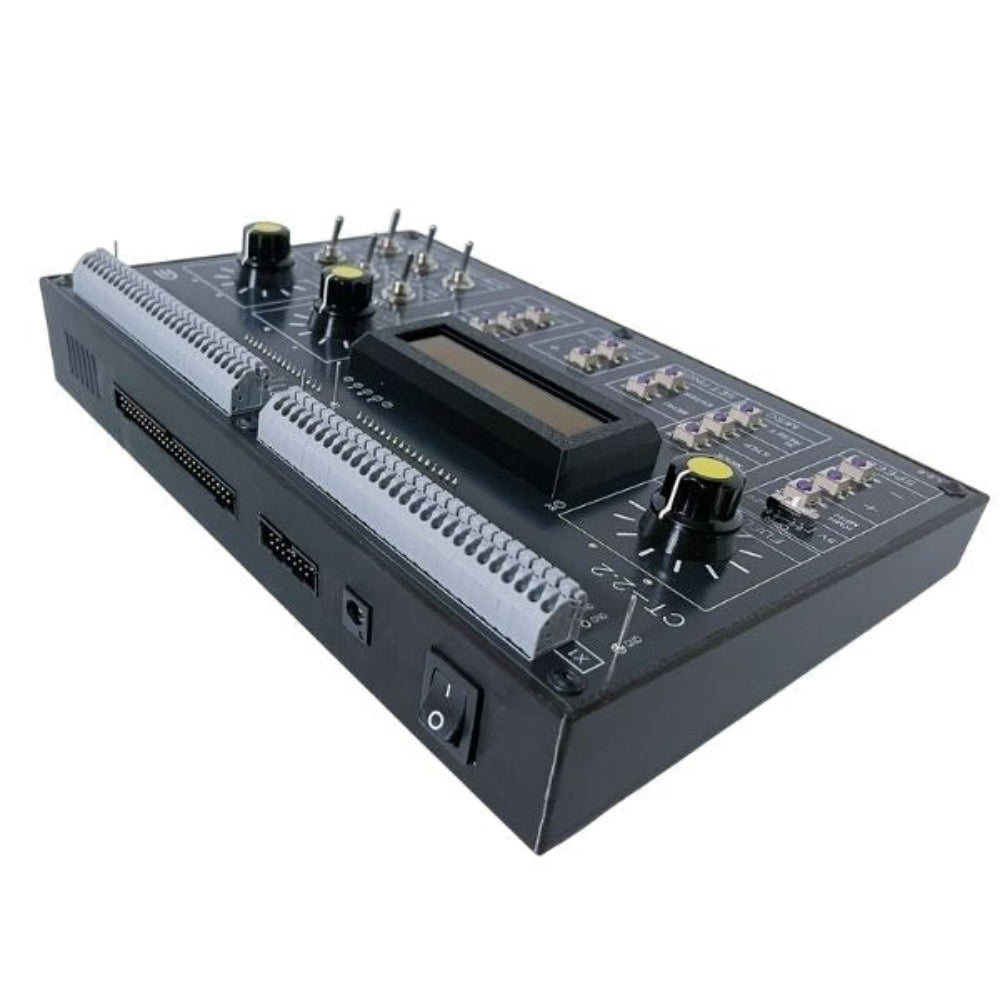

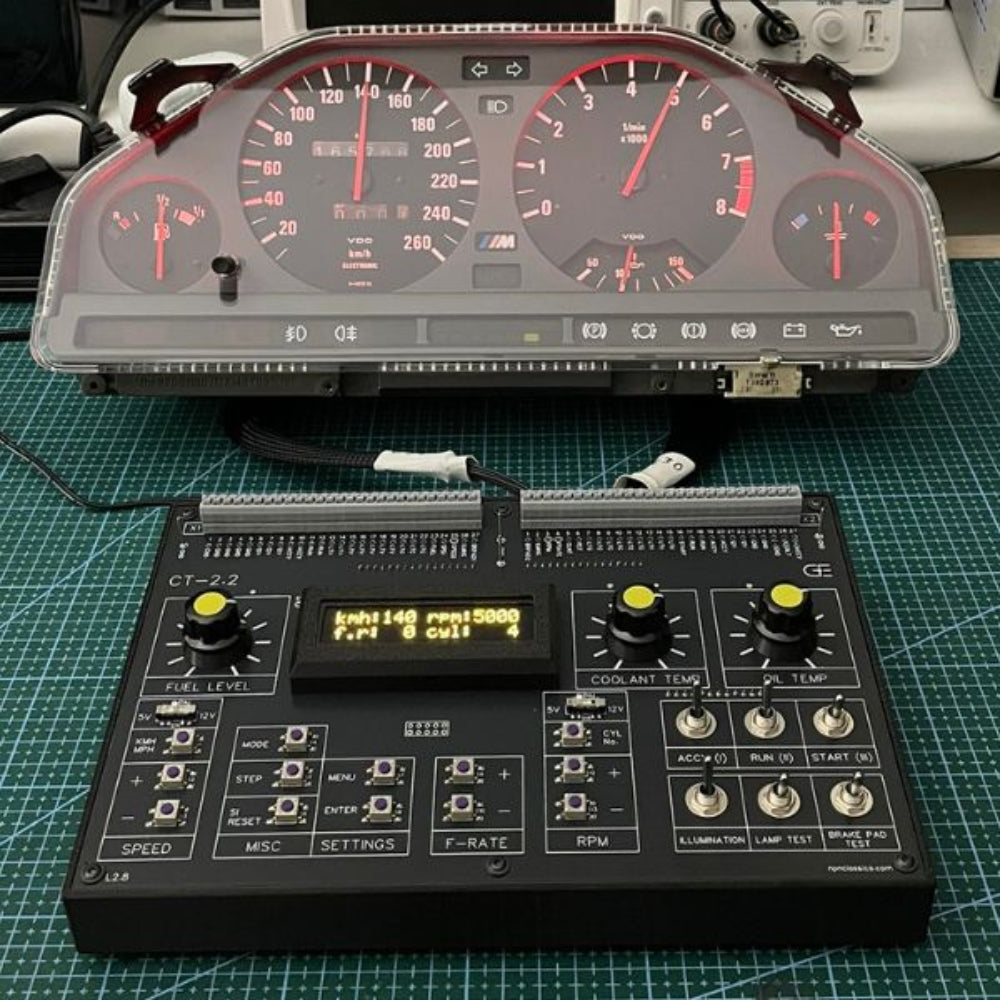

The CT-2.2 is a professional-grade instrument cluster test bench that allows you to fully test and diagnose instrument clusters outside the vehicle, simulating real driving signals and operating conditions with high accuracy.
This unit was originally developed for classic BMW models E30, E28, E24, and E23. However, it can also be adapted for use with other BMW models that rely on direct wired analog and pulse signals - such as the E36 - rather than digital communication interfaces like CAN bus or K-line found in newer instrument clusters. It supports essential inputs including speed, RPM, fuel level, and temperature, making it a reliable solution for classic BMW restorations, workshops, and enthusiasts.
Key Features:
-
Fuel tank level simulation (0-MAX, relative)
-
Coolant temperature simulation (0-MAX, relative)
-
Oil temperature simulation (0-MAX, relative)
-
Speed simulation: 0-300 km/h or 0-200 mph
-
RPM simulation: 0-10,000 RPM (4-12 cylinders)
-
Fuel rate signal output (0-100%, duty cycle)
-
Ignition key switch simulation
-
Service Indicator reset:
-
Oil Service
-
Inspection
-
-
Miscellaneous test functions (lamps, indicators, etc.)
Advanced Control & Adjustments:
-
Increase or decrease speed and RPM in multiple steps
-
Switch between km/h and mph
-
Speed factor correction based on tire size
-
Select engine cylinder count
-
Adjustable fuel rate duty cycle
-
Quick reset of service and inspection counters

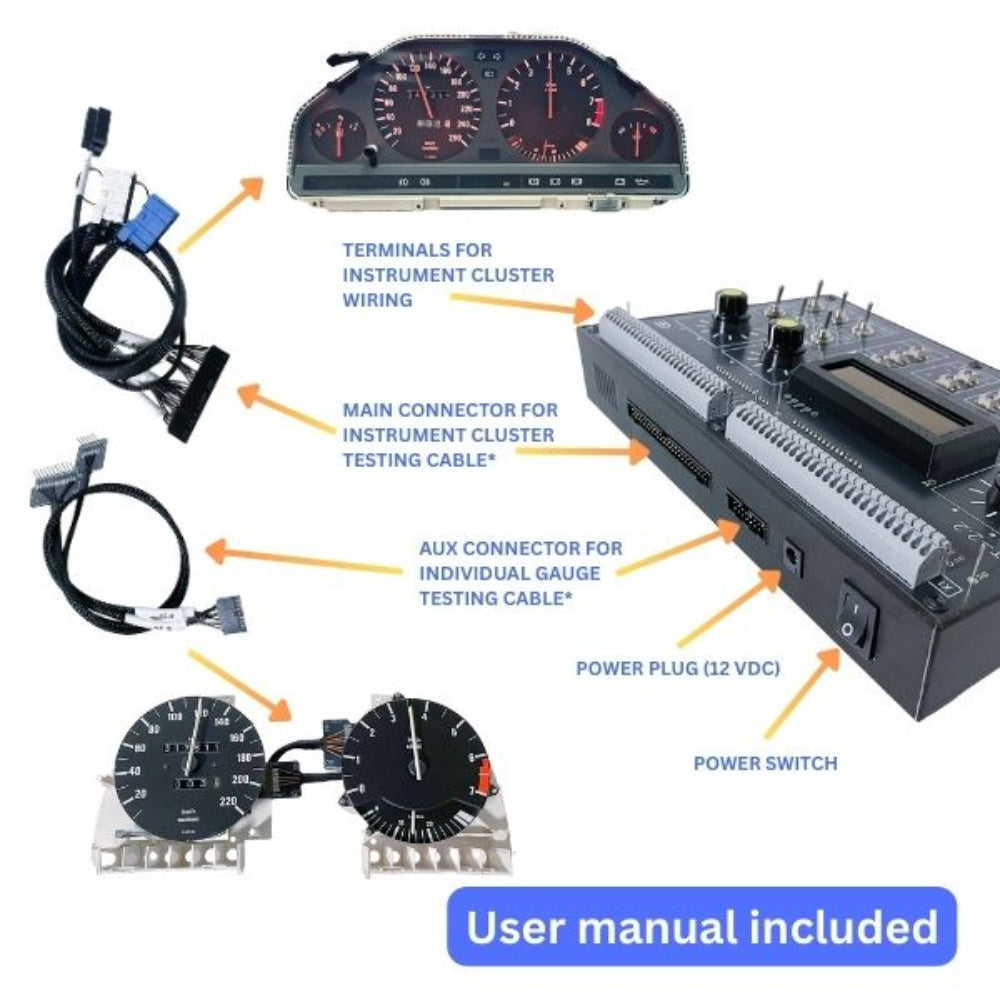

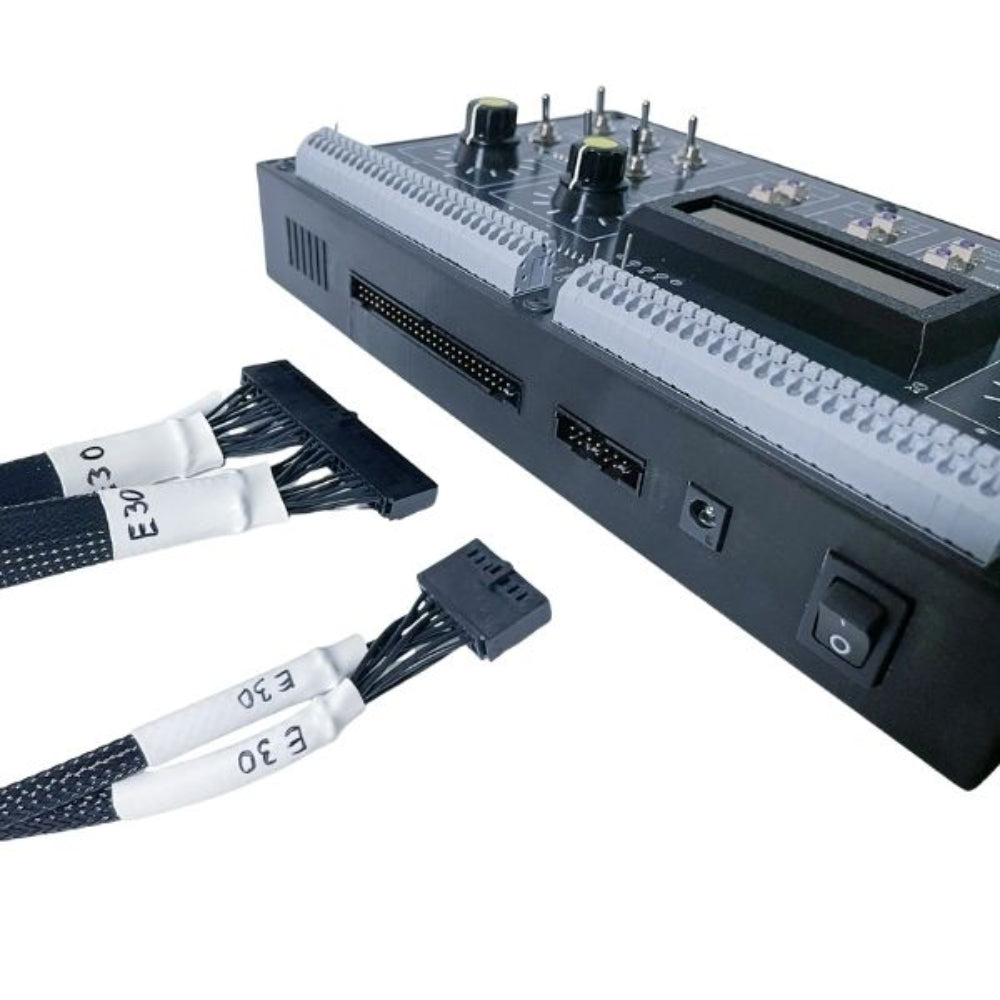

Connections & Power:
-
Main connector for instrument cluster testing
-
Auxiliary connector for individual gauge testing
-
12V DC power input
-
Power on/off switch
The CT-2.2 provides a reliable, precise, and time-saving solution for testing BMW instrument clusters without guesswork. Ideal for professional workshops and serious classic BMW projects alike.
Compatibility
Compatibility
- BMW E30
- BMW E28/E24/E23
- Other BMW models (for more detailed information, please contact us)
Specifications
Specifications
Key Features:
- Fuel tank level simulation (0–MAX, relative)
- Coolant temperature simulation (0–MAX, relative)
- Oil temperature simulation (0–MAX, relative)
- Speed simulation: 0–300 km/h or 0–200 mph
- RPM simulation: 0–10,000 RPM (4–12 cylinders)
- Fuel rate signal output (0–100%, duty cycle)
- Ignition key switch simulation
- Service Indicator reset:Oil ServiceInspection
- Miscellaneous test functions (lamps, indicators, etc.)
Advanced Control & Adjustments:
- Increase or decrease speed and RPM in multiple steps
- Switch between km/h and mph
- Speed factor correction based on tire size
- Select engine cylinder count
- Adjustable fuel rate duty cycle
- Quick reset of service and inspection counters
Connections & Power:
- Main connector for instrument cluster testing
- Auxiliary connector for individual gauge testing
- 12V DC power input
- Power on/off switch
What's in the box
What's in the box
- Testing device
- Power supply
- User manual

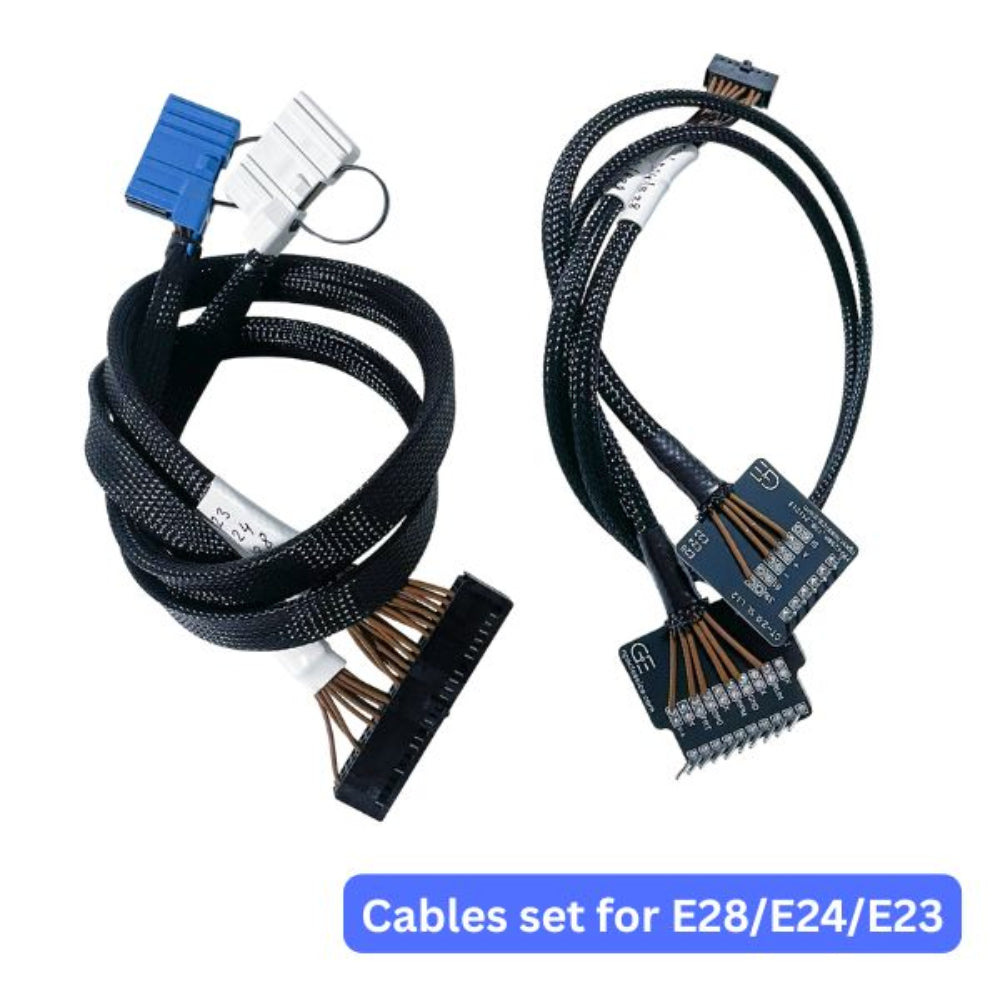

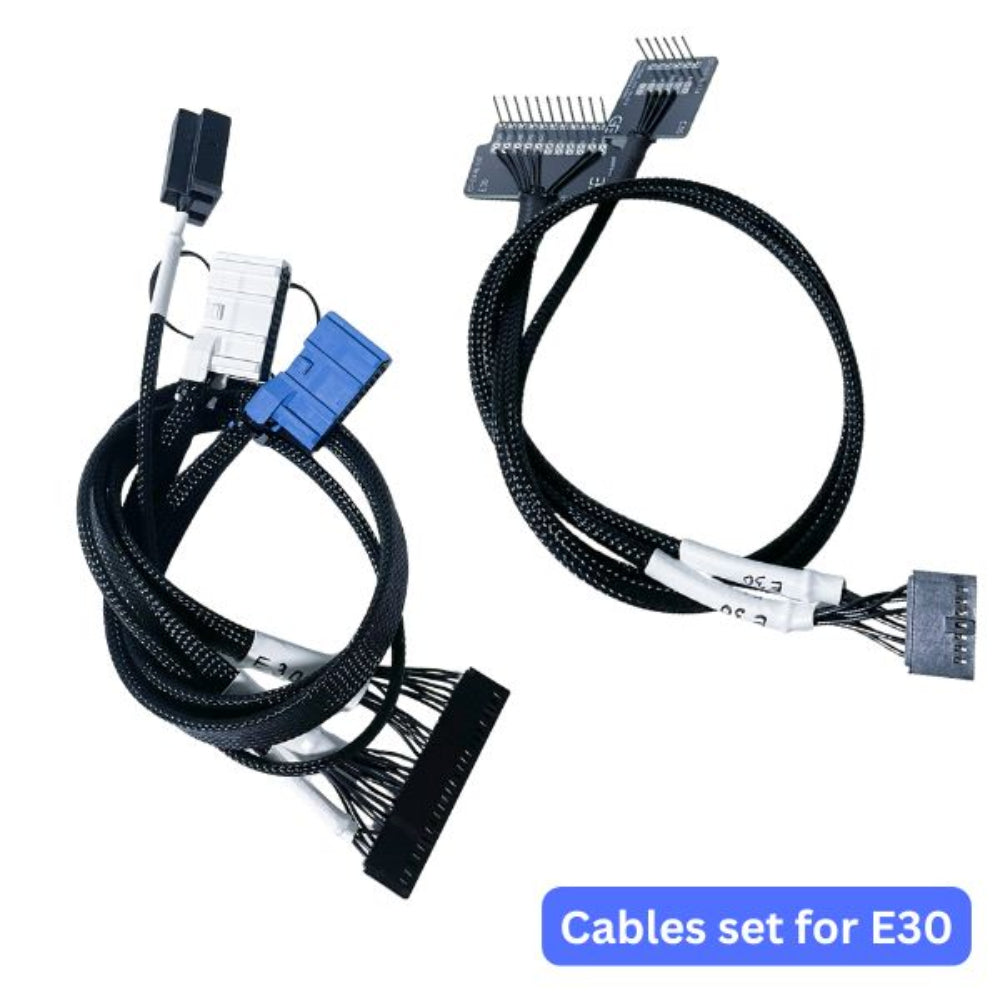

- Cables for testing (if ordered)
